Model

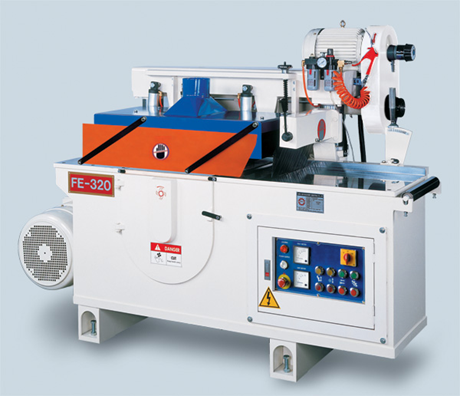

 FE-320

 Used circular saw  dia.

 250 mm (10 ") - 405 mm (16")

 Max. workpiece  thickness

 122 mm (4 3/4 ")

 Max. circular saw  inner & outer range

 320 mm (12 1/2")

 Circular saw spindle  dia.

 70mm +20x6 Twin diagonal  square key

 Circular saw revolution speed

 4000 rpm

 Number of feeding  roller

 Upper feeding roller 4pcs,  lower feeding roller 2pcs

 Feeding speed

 Adopts vari-pole motor and coupled with stepless varible speed

 Circular saw power

 30HP / 50HP on Request

 Circular saw  elevating power

 One / 2HP

 Machine size

 2060x1030x1530 mm

 Measurements

 2270x1210x1600 mm

 N.W./ G.W.

 1600 / 1800 kgs
