Model

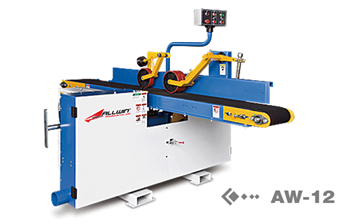

 AW-12

 Max. work piece size (W x H)

 300 x 300 mm (12"x12")

 Distance from upper blade to conveyor table

 3~300 mm

 Conveyor belt size

 285x5480 mm (11-1/5"x215-3/4")

 Saw wheel diameter

 Ø28" x 1"(W)

 Feed speed

 5 to 25 M/min

 Saw blade size (L x W x T)

 4265 x 27 x 0.9 mm (168" x 1")

 Saw wheel motor

 20 HP

 Hydraulic system motor

 2 HP

 Dust hood diameter

 Ø4" x 3

 Net weight

 1000 kgs

 Packing dimensions – Frame

 2180 x 1140 x 1140 mm

 Packing dimensions – Conveyor

 2870 x 640 x 600 mm
